Mine Site Surveying

User-ready data for mine and tailings management

Open pit mines and tailings facilities are in a constant state of change. Engineers have a continual need for accurate elevation survey data to manage these dynamic sites safely and responsibly.

PhotoSat’s Mine Site Surveying ensures engineers get reliable, robust, and time-stamped survey data for the entire active area, without the need for site access.

Precision Orthophoto

Colour Shade

Precision Orthophoto

Colour Shade

Key applications:

Mine site operations
Volume reconciliation and reporting
Short-, mid-, and long-range planning

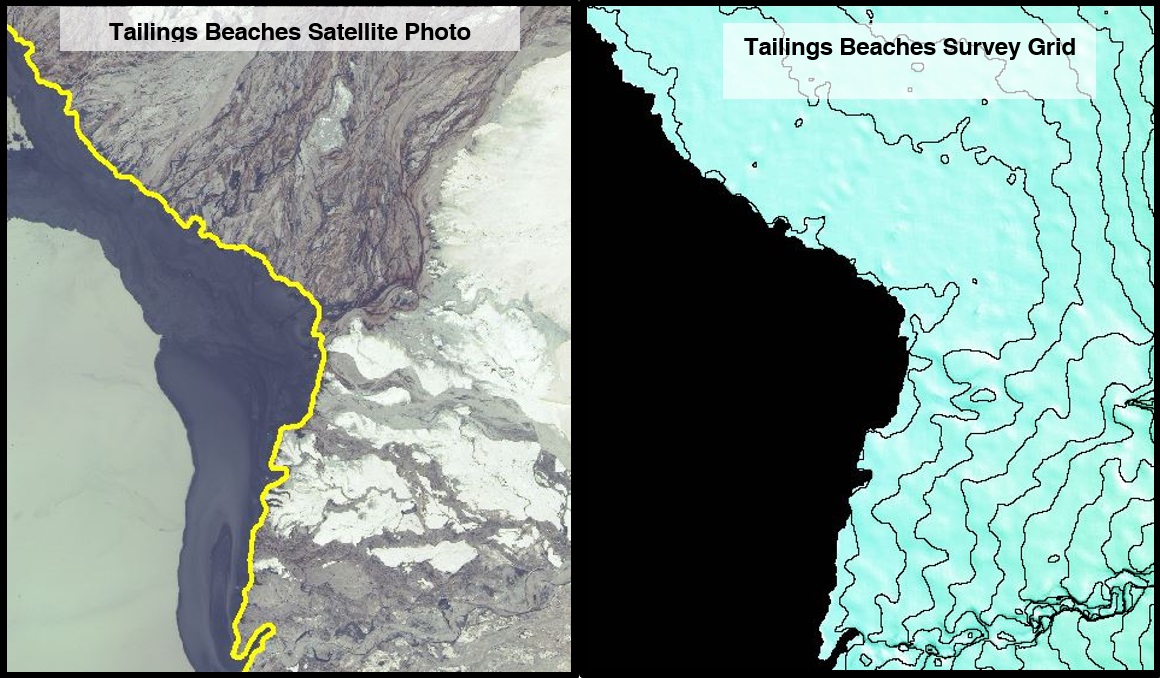

Tailings facility management

Elevation grid formats:

File Format(s): ASCII, CSV, DWG, DXF, ECW, ERS, LAS, TIF, and XML.

Thinned Grid formats are available to reduce file size for projects over low-grade slopes.

Learn more about the technology behind our Elevation Surveying.

Technical Specifications:

Type

Bare ground surface (DEM/DTM)

Vertical Accuracy (with control)

~10 – 15 cm RMSE More Info

Satellite Specifications for Elevation Surveys

Some specifications for survey deliverables depend on the satellite used to acquire the imagery.

Satellite	Expected Vertical Accuracy	Orthophoto Ground Resolution (Pixel Size)	Orthophoto Colour	Elevation Grid Spacing (Ground Sample Distance)
WV1	10 – 15 cm RMSE (with ground control)	50 cm	Greyscale, with colourization options available	1 m or 50 cm
WV2	10 – 15 cm RMSE (with ground control)	50 cm	Colour	1 m or 50 cm
WV3	10 – 15 cm RMSE (with ground control)	50 cm or 30 cm	Colour	1 m, 50 cm, 30 cm, or 15 cm (resampled)
Pleiades 1A	20 – 30 cm RMSE (with ground control)	50 cm	Colour	50 cm
Pleiades 1B	20 – 30 cm RMSE (with ground control)	50 cm	Colour	50 cm
Keyhole	--	0.61 m to 1.2 m	Greyscale	0.61 m to 1.2 m
